DPF Delete: From Regeneration Types to Removing DPF-Related DTCs

thumbnail

DPF Delete Explained: What You Need to Know

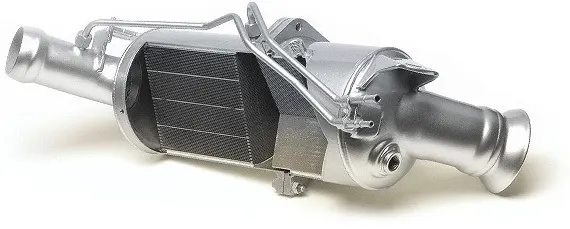

What is the DPF System?

The Diesel Particulate Filter (DPF) is an emissions control device found in modern diesel engines. Its primary function is to capture and store soot (particulate matter) from exhaust gases, thereby reducing emissions and complying with environmental regulations.

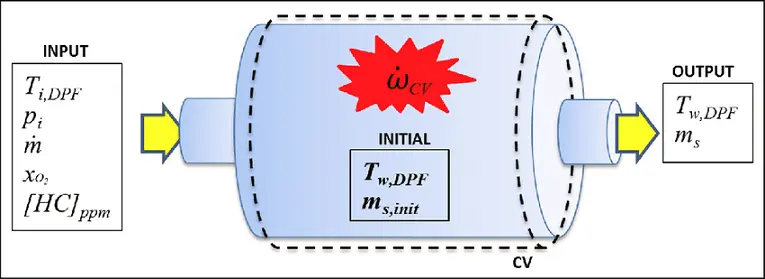

What is DPF Regeneration?

Over time, the trapped soot builds up in the DPF, reducing engine efficiency and potentially causing damage. DPF regeneration is the process of burning off this soot to clean the filter and restore performance.



Types of DPF Regeneration:

There are three main types of DPF regeneration:

1. Passive Regeneration

How it works: Happens automatically during normal driving conditions when the exhaust temperature is high enough (typically above ~250–300°C).

When it happens: Often during highway driving or sustained high-speed driving.

Pros: No fuel penalty or driver involvement.

Cons: Doesn’t occur if the vehicle is mostly driven at low speeds or short trips.

2. Active Regeneration

How it works: The engine control unit (ECU) initiates it when soot load gets too high and passive regeneration hasn’t occurred. The ECU raises the exhaust temperature (to ~600°C) by injecting extra fuel, often late in the combustion cycle or directly into the exhaust stream.

When it happens: Triggered when soot reaches a certain threshold (e.g., 40–70% of DPF capacity).

Pros: Automatically managed by the vehicle, no need for manual intervention.

Cons: Can reduce fuel efficiency slightly during regeneration.

3. Forced (Manual) Regeneration

How it works: Performed using a diagnostic tool or at a service center when passive and active regeneration fail or the filter is severely blocked.

When it happens: Needed when soot levels are critically high (e.g., >90%), often accompanied by dashboard warnings or limp mode.

Pros: Can restore heavily clogged DPFs.

Cons: Requires technician involvement; can be time-consuming and potentially damaging if done frequently.

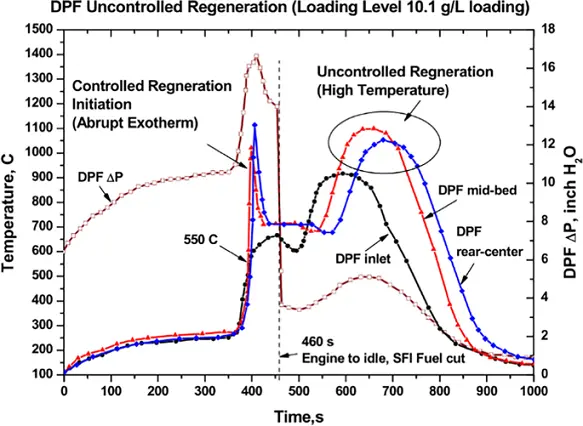

DPF Regeneration

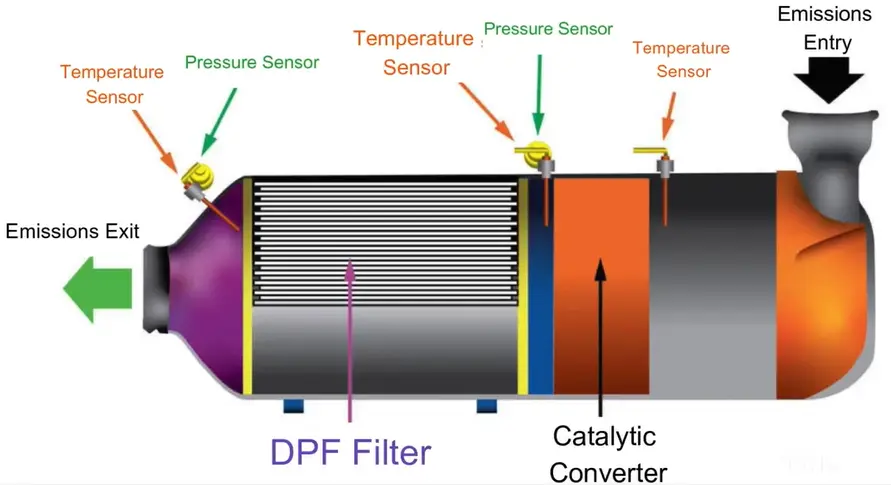

Components of the DPF System

A typical DPF system includes:

DPF filter: Traps soot particles.

Temperature and pressure sensors: Monitor filter performance.

Differential pressure sensor: Measures pressure before and after the DPF.

Regeneration system: Burns off accumulated soot through passive or active processes.

ECU (Engine Control Unit): Manages the regeneration process and monitors emissions.



Pros and Cons of the DPF System

Pros:

  • Reduces harmful emissions.
  • Helps meet government emission standards.
  • Enhances public health and environmental safety.

Cons:

  • Can clog and cause backpressure, leading to performance loss.
  • Requires regular maintenance and regeneration.
  • Expensive to replace if damaged.



Why Do We Turn Off the DPF?

Drivers may choose to delete or bypass the DPF system for several reasons:

  • Avoid costly repairs and maintenance.
  • Improve engine performance and responsiveness.
  • Prevent frequent clogging in urban or short-distance driving.
  • Use in off-road or racing applications where emission rules do not apply.



Methods of DPF Deletion/Removal

 There are two main methods for DPF Delete/ DPF off:

Physical removal: The DPF filter is physically taken out and replaced with a straight pipe or dummy filter.

Software delete: ECU software is modified to disable DPF functionality and prevent related fault codes.

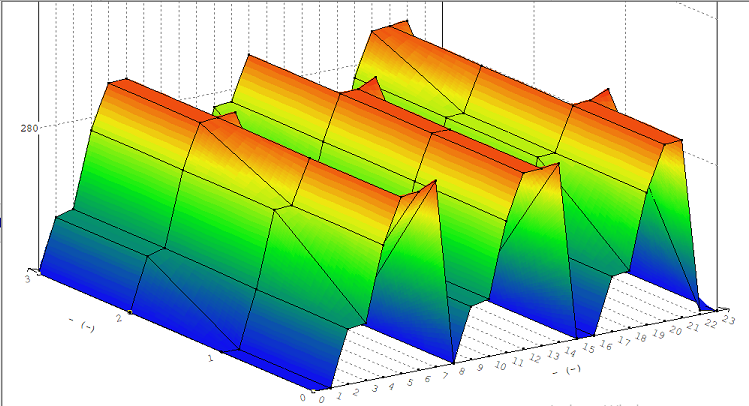

 DPF off using WinOLS-2D View

DPF Delete Through ECU Tuning/ ECU Reflash

This method involves modifying the engine’s software to turn off the DPF function within the ECU. It disables regeneration cycles and removes DPF-related diagnostic trouble codes (DTCs).



Pros and Cons of DPF via ECU Tuning/ ECU Reflash

Pros:

  • Cleaner engine operation with less backpressure.
  • Potential horsepower and torque increase.
  • No physical modifications necessary if the DPF remains in place.

Cons:

  • Illegal in many countries.
  • May void vehicle warranty.
  • Requires professional software knowledge and tools.



Does DPF Reduce Horsepower (HP)?

Yes. The DPF can cause exhaust backpressure, limiting airflow and slightly reducing engine performance.

DPF Delete Software

Software used for DPF delete includes:

WinOLS:

In reality, these are ECU tuning tools that we use to read and write files, and none of them independently have an option for DPF off/DPF delete.

Using these ECU tuning tools, you can read the ECU/vehicle file, adjust it using the software mentioned above, and then write it back using the same programming tools.

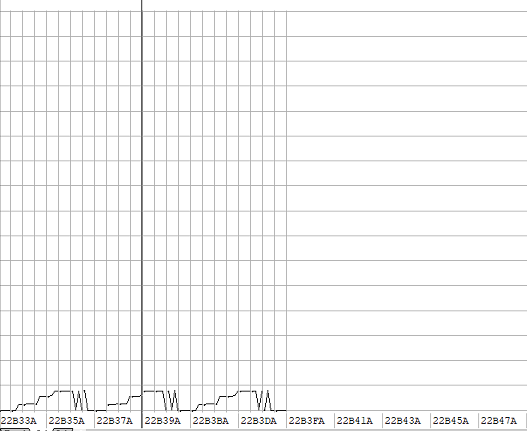

DPF off using WinOLS software

Swiftec:

It's software that performs DPF delete automatically. Although Swiftec is powerful and well-known software, it either lacks a solution for a significant number of challenging ECUs, or its solutions come with DTCs.

ECM Titanium, RaceEvo or StageX:

You cannot use these software programs directly for DPF delete, but you can use them for adjustments after DPF delete to ensure that your vehicle's ECU is calibrated after the DPF removal.

These software allow tuners to modify the ECU maps and disable DPF strategies.



DPF Delete Tools

Common tools include:

KESSv2, K-TAG, Kess3, CMD Flash, bflash, KT200, Byte shooter, Autotuner and DimSport tools New Trasdata and New Genius. Actually, these are ECU tuning tools that we use to read and write files, and none of them independently have an option for DPF off/DPF delete.

Using these ECU tuning tools, you can read the ECU/vehicle file, adjust it using the software mentioned above, and then write it back using the same programming tools.



Does DPF Off Affect AdBlue?

Not directly. AdBlue is part of the SCR (Selective Catalytic Reduction) system, which targets NOx emissions. However, many tuners also delete AdBlue when removing the DPF to avoid fault codes or combined system errors.



Does DPF Off Affect EGR?

No, but it can be deleted at the same time. The EGR (Exhaust Gas Recirculation) system is separate but often tuned out during DPF deletes for increased performance and reliability.



Does DPF Off Increase Horsepower (HP)?

Yes. Removing the DPF often increases horsepower and torque by reducing backpressure and improving exhaust flow, especially when combined with a custom tune.

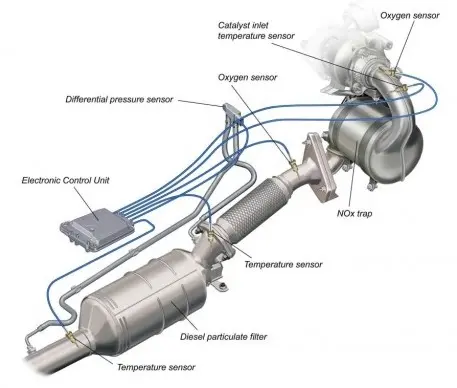

 Schematic of DPF system

Does DPF Off/Delete Improve MPG (Fuel Economy)?

Often, yes. Improved exhaust flow and reduced regeneration cycles can lead to better fuel efficiency, especially in long-distance driving conditions.



Is DPF Off Illegal?

In most countries, yes. Removing or disabling emissions equipment violates environmental laws and can result in fines, failed inspections, or registration denial.



Does DPF Off Void the Warranty?

Yes. Manufacturers typically void warranties if emissions systems are tampered with or disabled.



DTCs or Fault Codes Related to DPF and How to Remove Them

Common DTCs related to DPF System:

P2002: DPF efficiency below threshold.

P2463: DPF soot accumulation.

P244A: Differential pressure too high.

To remove them, tuners edit the ECU software and disable DTC monitoring related to the DPF system.



Best AFR (Air-Fuel Ratio) After DPF System Removal

Optimal AFR remains between 14.7:1 (stoichiometric) for petrol and 16:1 to 18:1 for diesel (14.55:1 stoichiometric) under normal conditions. However, after DPF removal and tuning, a slightly leaner mixture may be used to balance power and emissions, depending on the setup.



Is DPF Required for Stage 2 and 3 Remaps (Stage Tuning)?

Not required, but strongly recommended to delete. DPF systems can restrict the increased exhaust flow and cause issues under high boost or aggressive tuning in Stage 2 or Stage 3 setups.



DPF Off via ACM

ACM (Aftertreatment Control Module) deletion involves modifying or disabling the ACM alongside the ECU. This is often required in vehicles with separate aftertreatment control units, such as heavy-duty trucks. Special software and expertise are needed to safely disable the ACM and ensure no limp mode or DTCs are triggered.

Conclusion

The Diesel Particulate Filter (DPF) plays a critical role in reducing harmful emissions from diesel engines, but it comes with maintenance challenges. Understanding the different types of DPF regeneration, passive, active, and forced, can help maintain engine performance and avoid costly repairs. While DPF deletion may offer performance gains and fewer issues in specific use cases like off-road applications, it is illegal in most countries, may void warranties, and has environmental consequences. Always weigh the legal, mechanical, and ecological implications before opting for DPF removal or ECU modifications.



The best way to contact us and get answers to your questions is via WhatsApp +44 781 8419 058 and email support@ninjaremap.com


You Might Also Like

FAQs:

There are three types: Passive (automatic during high-temp driving), Active (ECU-controlled), Forced (manual via diagnostic tools).

To avoid frequent clogging, reduce maintenance costs, improve engine performance, or for off-road and racing applications where emissions laws don’t apply.

Yes, by reducing backpressure and stopping regeneration cycles, you may see improvements in both horsepower and fuel efficiency.

Not directly, but these are often removed together during ECU tuning to prevent compatibility or DTC (Diagnostic Trouble Code) issues.

Aside from legal issues, incorrect deletion can trigger limp mode, fault codes, or engine damage without proper tuning and tools.
