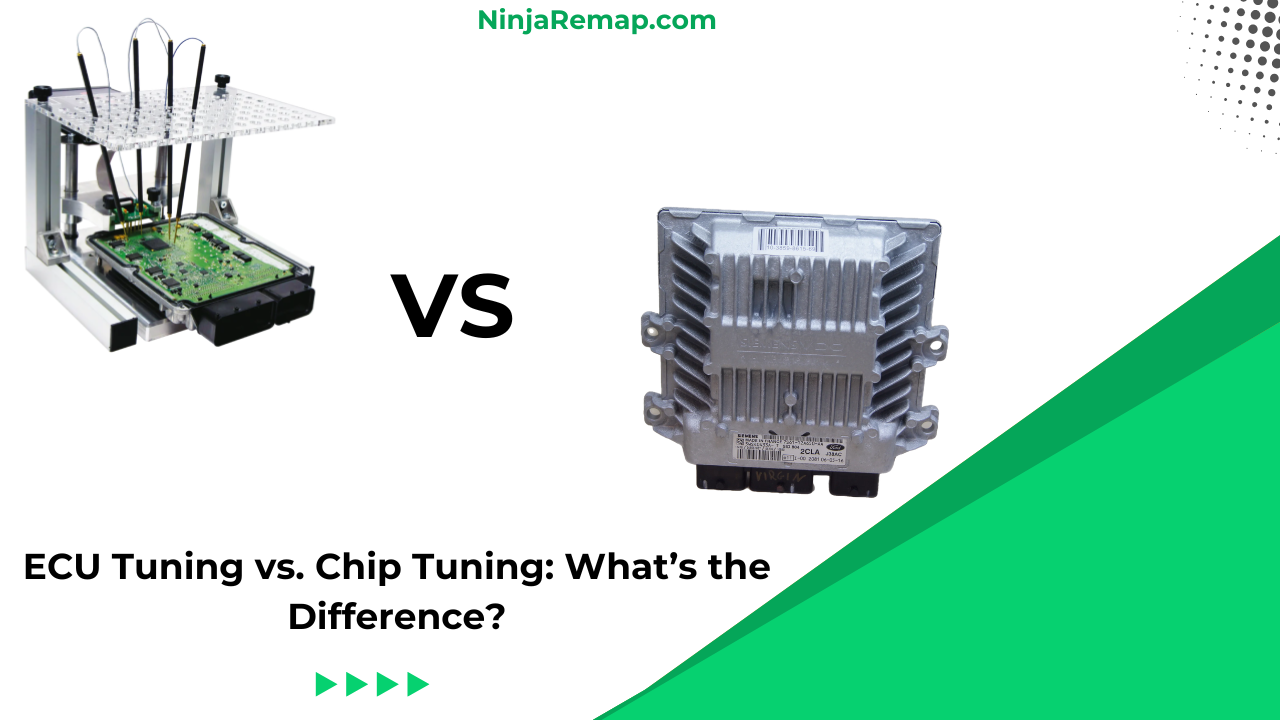

ECU Tuning vs. Chip Tuning: What's the Difference?

If you have little familiarity with the world of tuning and remapping, you have probably heard both terms ECU tuning and chip tuning, and the question may have arisen for you: What is the difference between the two? Many people assume that there is probably no difference between these two terms and that both refer to the same thing, but you should know that this is not true and the difference between these two terms is something worth several thousand dollars!

You should know that chip tuning is a method that is older than ECU tuning. In fact, chip tuning can be considered the beginning of the history of remapping. But why?

 What is “chip tuning”?

In the world of car remapping, chip tuning is a method for remapping a car that consists of a set of tasks. Simply put, chip tuning involves reading the car's ECU using older methods, accessing its original file, remapping it, and then rewriting it onto the ECU. In fact, at the beginning of the era of cars becoming fuel-injected and the mass introduction of ECUs into the automotive industry, ECU remapping was done through chip tuning. In this method, the tuner needs to carefully detach the car's ECU from its location in the vehicle, then also carefully remove the ECU protective casing to access the main ECU board where the ECU chips are located. Then, using predefined methods and protocols and with the help of soldering, they connect the necessary wires to the ECU and use the required tools to read the ECU flash file.

Actually, up to this point, "chip tuning" has not been fully completed yet! If you want to complete this task, after performing all the mentioned tasks, you need to remap the original file using remapping software, and then by redoing all these steps, you need to write the configured file onto the ECU. It is only at this point that you have successfully completed chip tuning (if you have not made a mistake somewhere). The point is that by making a mistake in the whole process, there is a possibility that the ECU or its original file could be completely lost, and you may have to spend several hundred or sometimes several thousand dollars to get a new ECU for your car! This is why we said the difference between chip tuning and ECU tuning can be worth several hundred dollars!

Now, you have exactly understood what chip tuning is. However, after this, we do not want to directly move on to ECU tuning because you should know that between these two methods, there is a method called "bench mode" or "bench tuning." But what is "bench tuning"?

Chip tuning is also known as "boot mode." Bench mode is a relatively newer method compared to boot mode, where the tuner removes the ECU from its location in the car but does not need to open the ECU casing to read and write it; instead, they perform this task only through the pins placed on the ECU. Following boot mode, we have the newest and easiest method, which is "ECU tuning."

What is “ECU Tuning”?

ECU tuning is a method in which you can easily read and remap the ECU file using the OBD port and an ECU tool (programmer). Writing it is also similar to reading it. But the question that arises next is why chip tuning is still prevalent and not outdated despite the mentioned newer methods?

The reason is that in some ECUs, for various reasons, precise and error-free methods of reading them have not been found yet, and subsequently, the manufacturers of programmers have not succeeded in adding the "OBD option" of these ECUs to their devices. This may be due to the complexity and advanced nature of the circuitry of these ECUs, resulting in a high error rate in reading them or errors with the programmers. That is why not only chip tuning is still not obsolete, but it is still one of the most popular and nostalgic methods for professionals, even those who have lost thousands of dollars in this process; of course, at the cost of gaining experience!

The best way to contact us and get answers to your questions is via WhatsApp +44 781 8419 058 and email info@ninjaremap.com


You Might Also Like

FAQs:

ECU tuning and chip tuning are both methods of car remapping, but they differ in their approach. Chip tuning is an older method involving physically accessing and modifying the ECU's original file, while ECU tuning uses the OBD port and a programmer tool for a simpler and less invasive process.

Chip tuning involves physically handling the ECU, which includes detaching it from the car, opening its casing, and soldering wires to read and write the ECU flash file. This process is complex and can lead to mistakes that may damage the ECU, potentially costing several hundred or thousand dollars to replace.

Bench tuning, also known as bench mode, is a newer method compared to chip tuning (boot mode). It involves removing the ECU from the car but does not require opening the ECU casing. Instead, the tuning is done through the pins placed on the ECU, making it a less invasive process.

Chip tuning is still prevalent because some ECUs have complex circuitry that newer methods like OBD-based ECU tuning cannot handle accurately. As a result, chip tuning remains a reliable option for certain vehicles and is valued for its nostalgic and professional appeal among tuners.
